Uni-Smart JAR 85 LiVAR
Sealing Machine

EQUIPMENT · Sealing Machine

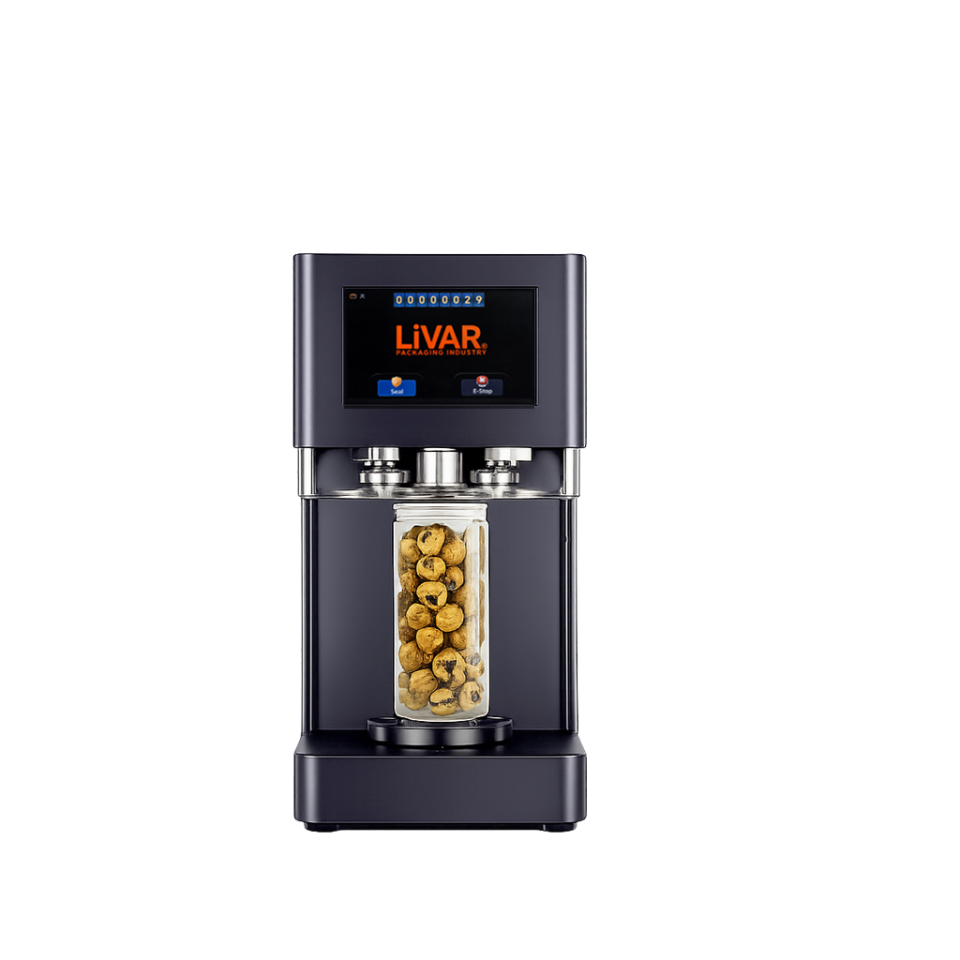

Uni-Smart JAR 85 LiVAR

SKU Uni-Smart-85-LiVAR-224L51Model UNI-SMART 85 / #305
CAD 999.00
Display price
ColourChoose an option
VoltageChoose an option

Select voltage and colour.

LiVAR engineeredMatched to the stated neck and closure system.
Electrical configurationSelect the required voltage and finish.
Technical supportProduction setup and validation guidance available.

Product data

Specifications

Technical specifications

Mouth Diameter85 mm Supports #305 standard; compatible with all aluminum lids (FO / EOP)
Operation ModesAuto / Manual
SensorUpgraded version with an optical sensor
Motor Power370W performance motor (fast, stable, low-noise)
Net Weight39 kg
MaterialMetal paint electrostatic
Rated Voltage220 V / 110 V
HS CODE8422.30.9150 (CAN JAR Sealing Machine)
Touch ScreenTouchscreen control (with Seal and E-Stop buttons on the panel)
DisplayUpgraded full-color TFT display (high resolution, smart and fully touch)
One-Touch SealingOne-touch operation; seals any compatible container type
Designed ForSealing jars with 85 mm mouth diameter
Smart Height AdjustmentSupports jar height from 6 cm to 20 cm (no base change required, no expertise needed)
ColorBlack / White
Size45 cm × 25 cm × 60 cm
Pallet OptionDetails
Option 1Euro pallet 120 × 80 cm (total height approx. 1.5 m)
Units per Pallet14 units (7 units per layer × 2 layers)
Net Goods Weight per Pallet14 × 39 = 546 kg
Net Goods CBM14 × 0.0675 = 0.945 m³
Approx. Packed Pallet CBMApprox. 1.290 m³ (based on external pallet dimensions)
Option 2Pallet 120 × 100 cm (total height approx. 1.5 m)

Main specifications

StandardModel #305
Compatible lidsFO and EOP aluminum lids

Control system

InterfaceFull-colour touch-screen with Seal and E-Stop controls

Container range

Supported jar height6 cm to 20 cm

Machine body

Dimensions45 × 25 × 60 cm

Appearance

Colour optionsBlack or White

Commercial information

Published checkout priceCAD 999.00 per selected published configuration
Taxes and freightCalculated or confirmed separately unless stated in an accepted quotation.

Product guide

Details and applications

Product overview

UNI-SMART 85 LiVAR is a dedicated PET JAR sealing machine for the exclusive 85 mm / #305 mouth system. Its touch interface, automatic and manual modes, optical sensor and smart height adjustment support consistent production workflows.

Touch-screen control

The upgraded full-colour TFT interface provides direct access to sealing controls. Seal and emergency-stop controls remain available on the machine panel.

Smart height adjustment

The machine supports LiVAR PET JAR heights from 6 cm to 20 cm without replacing the base. This allows the Cylinder, Round and Square JAR range to be processed using the same 85 mm sealing standard.

Compatibility

  • LiVAR PET JAR containers with 85 mm mouth.
  • #305 FO and EOP aluminum lids.
  • Use verified sealing parameters and complete leak and opening tests before production.

Pallet guidance

Machine volume is approximately 0.0675 m³ per unit based on dimensions of 45 × 25 × 60 cm. Final pallet quantities and shipping weight must be confirmed using packed carton dimensions and gross weight.
