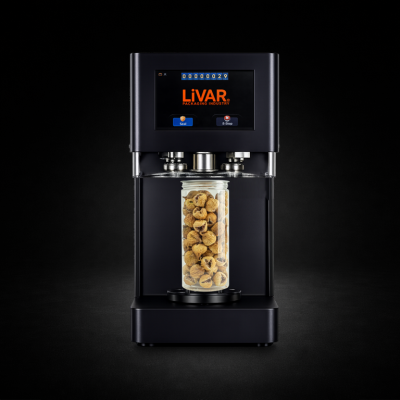

Next productUni-Smart JAR 85 LiVARCAD 999.00
Cart 0
Mini Can Sealing Machine LiVAR ®
Sealing Machine

EQUIPMENT · Sealing Machine

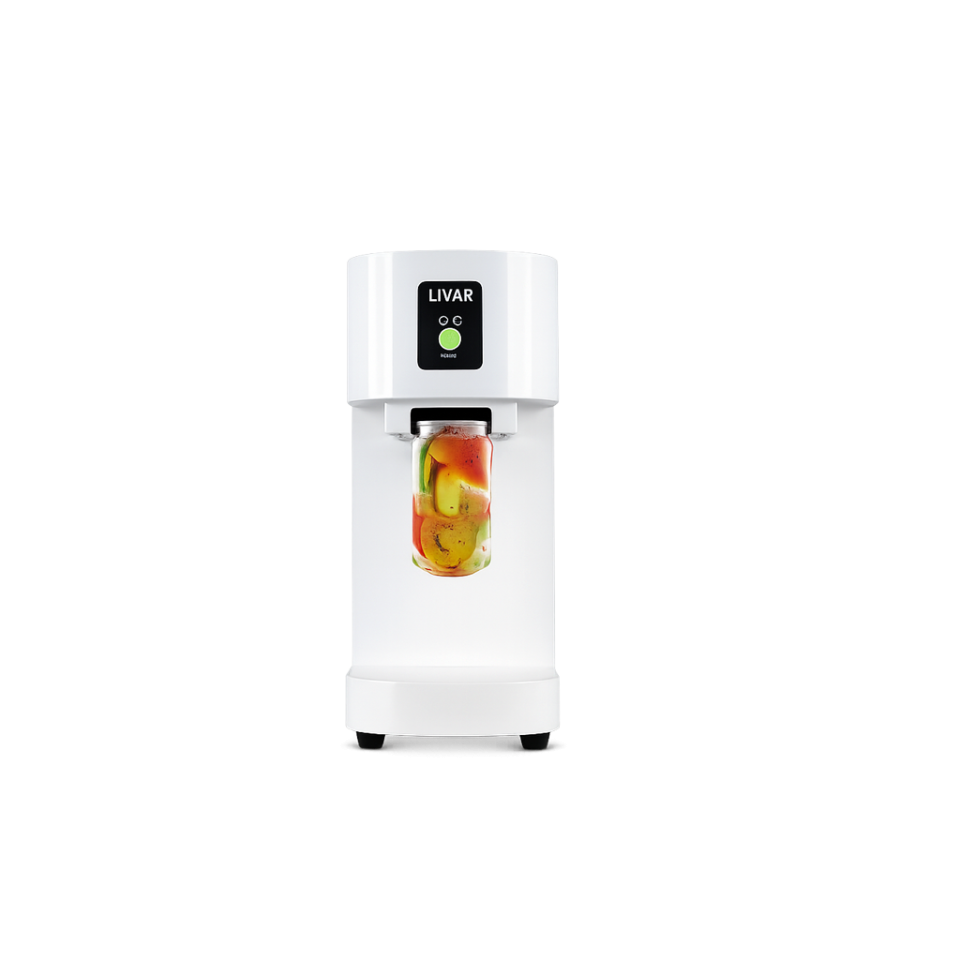

Mini Can Sealing Machine LiVAR ®

SKU Mini-Can-Sealing-Machine-LiVAR-9A6R01Model Mini Can Sealer / #202
CAD 399.00
Display price
VoltageChoose an option
ColourChoose an option

Select voltage and colour.

LiVAR engineeredMatched to the stated neck and closure system.
Electrical configurationSelect the required voltage and finish.
Technical supportProduction setup and validation guidance available.

Product data

Specifications

Technical specifications

Compatible Neck / FormatOnly 55mm (202 Neck 55mm) LiVAR Exclusive
Compatible ContainersLiVAR PET CAN (55mm)
Compatible LidsLiVAR Aluminum Lids: SOT (Stay-On-Tab) / EPE (Easy Peel End)
Sealing Speed< 1 second per seal (typical operation)
Adjustment RequirementNo Adjustment Needed (for LiVAR PET CAN 55mm)
Net Weight5.9 kg
Machine BodyStainless Steel
Machine Dimensions44.5 × 32.5 × 23.5 cm
Power Options110V or 220V (customizable at order)
ColorWhite or Black (custom production)
Standards / ComplianceCE / FCC
IP / ProtectionRegistered / protected in Canada under LiVAR Canada
CategoryLink
Compatible PET CAN Bottles (55mm)View Compatible PET CAN Collection
Compatible Aluminum Lids (202 Neck 55mm)View Compatible Aluminum Lids (SOT / EPE)
Compatible Plastic Cover (Cover 202 Neck 55mm)View Compatible Plastic Covers (55mm)
MethodAction
Send a Request (Website Form)Submit Your Request
WhatsApp (Chat)+17788683220

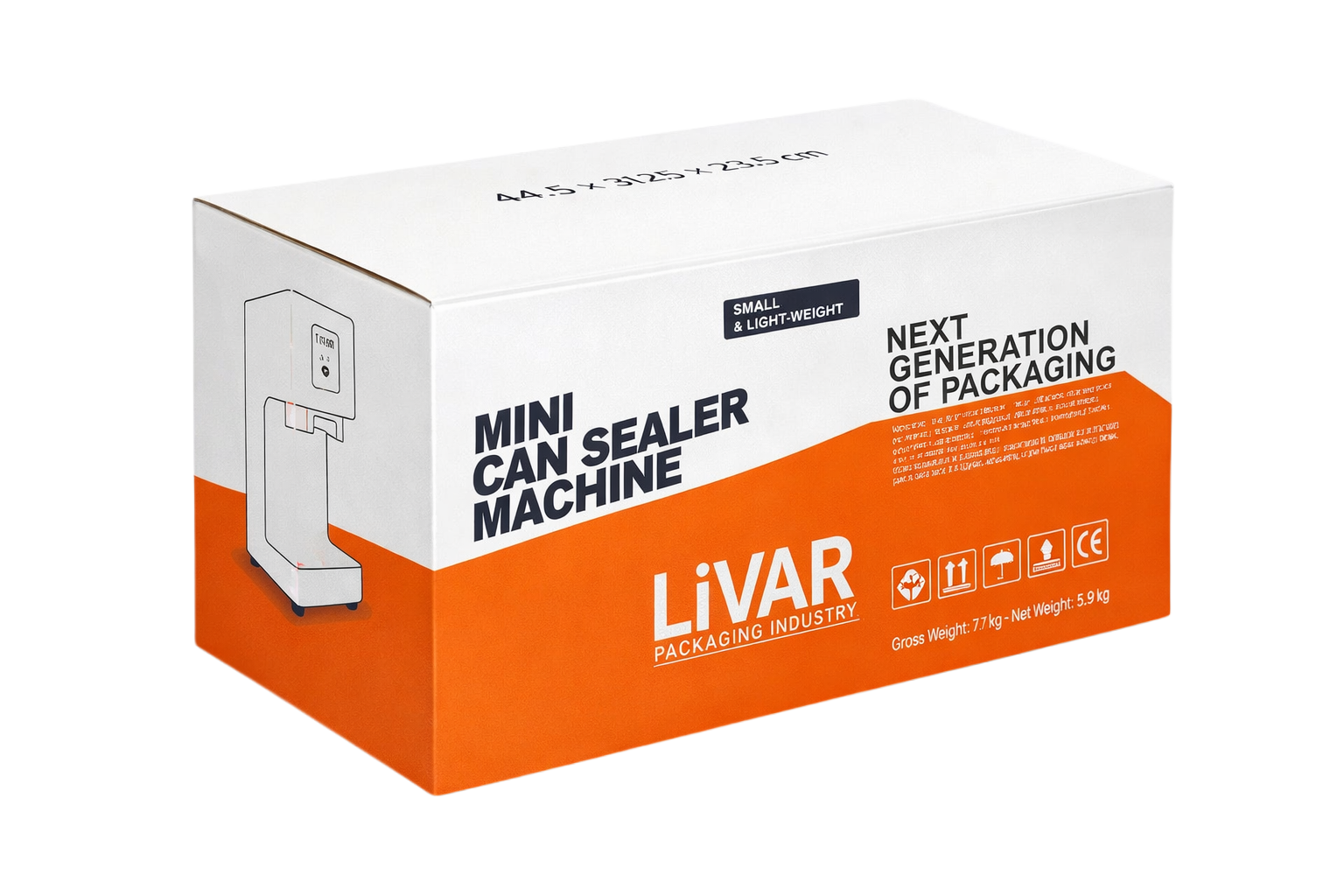

Packaging DetailsInformation
Carton Dimensions44.5 × 32.5 × 23.5 cm
Gross Weight (With Packaging)7.7 kg
CBM (Per Carton)0.034009 m³ (≈ 0.0340 m³)
ItemValue
Dimensions Used0.445 × 0.325 × 0.235 m
Pallet TypeEstimate
120 × 100 cm (Common in GCC)Layout: 6 cartons / layer × 3 layers ≈ 18 units Product gross weight: 18 × 7.7 = 138.6 kg Add pallet weight (approx.): 20–30 kg Total pallet weight (approx.): 158.6–168.6 kg Pallet CBM (cartons only): 18 × 0.034009 = 0.6122 m³ Optional : if 4 layers allowed → 24 units, CBM ≈ 0.8162 m³
Euro Pallet (120 × 80 cm)Layout: 4 cartons / layer × 3 layers ≈ 12 units Product gross weight: 12 × 7.7 = 92.4 kg Add pallet weight (approx.): 20–30 kg Total pallet weight (approx.): 112.4–122.4 kg Pallet CBM (cartons only): 12 × 0.034009 = 0.4081 m³

Machine body

MaterialStainless steel
Dimensions44.5 × 32.5 × 23.5 cm

Electrical

Voltage options110 V or 220 V

Appearance

Colour optionsBlack or White

Standards

ComplianceCE / FCC

Commercial information

Published checkout priceCAD 399.00 per selected published configuration
Taxes and freightCalculated or confirmed separately unless stated in an accepted quotation.

Product guide

Details and applications

Product overview

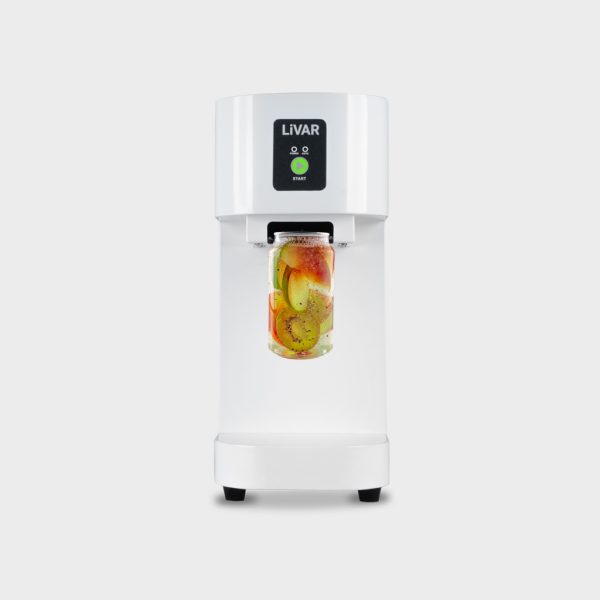

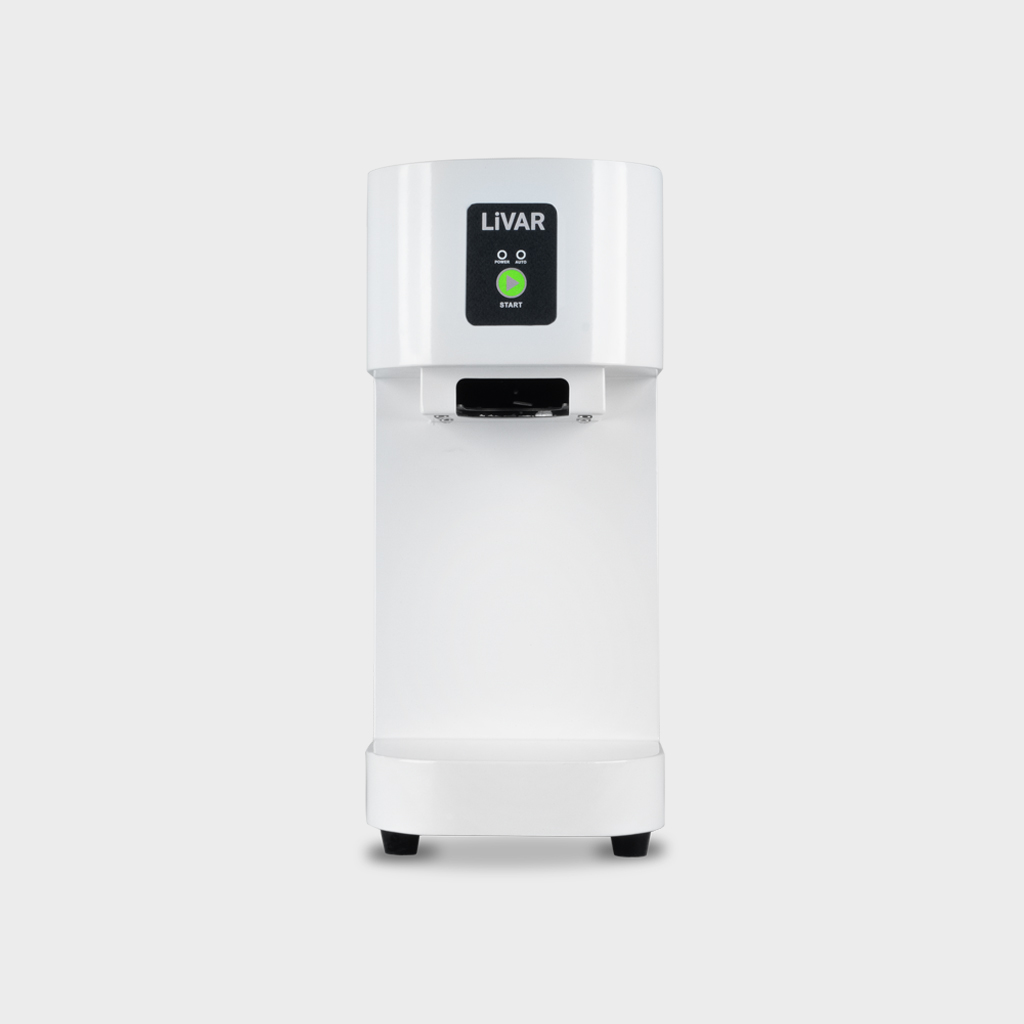

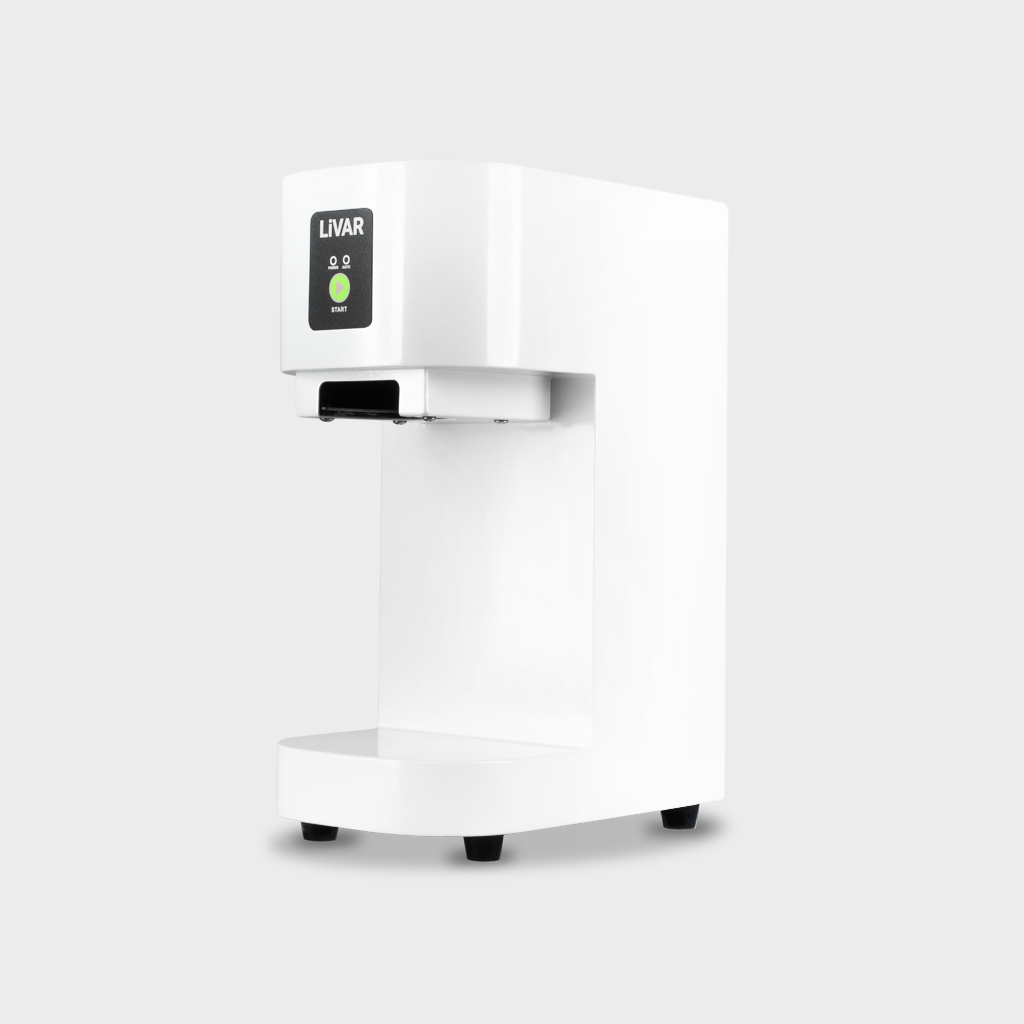

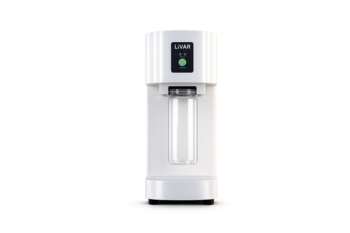

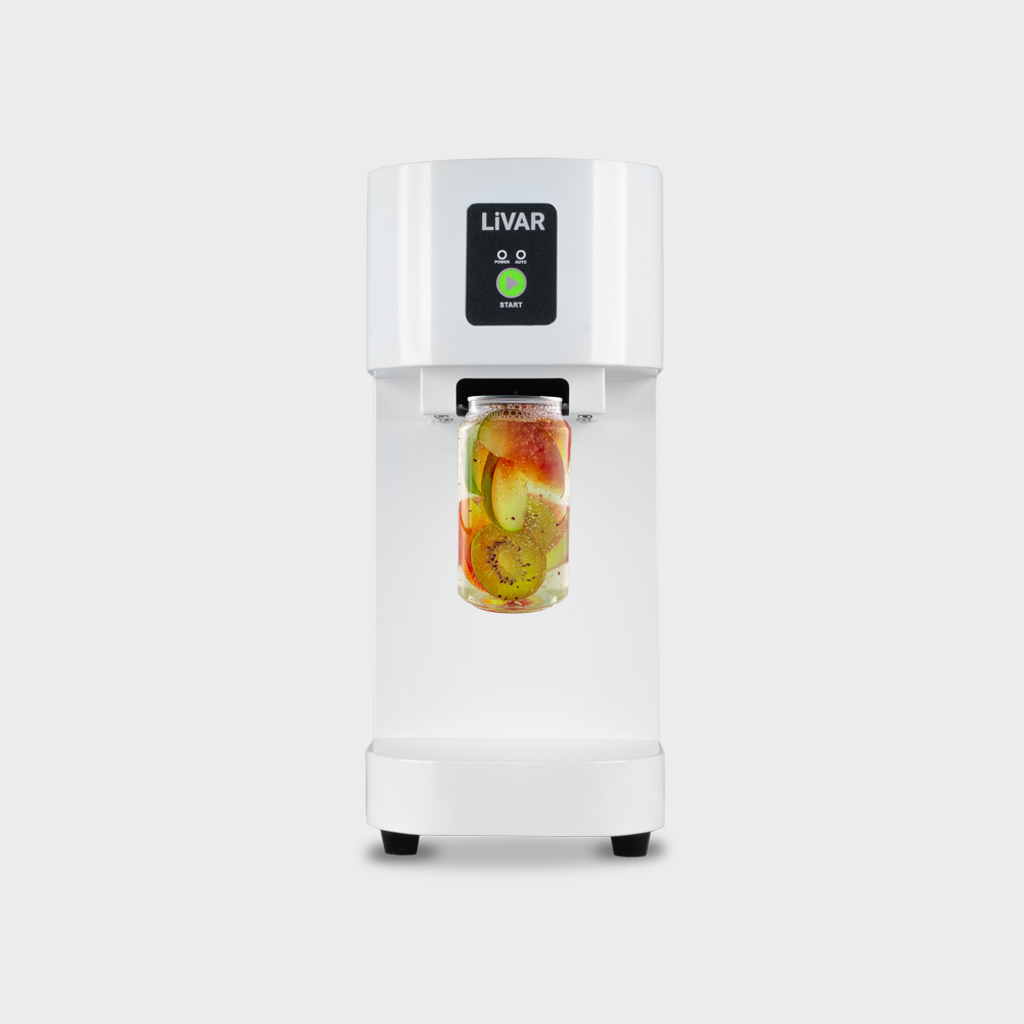

The Mini Can Sealing Machine LiVAR is a compact professional system for sealing aluminum lids onto LiVAR PET CAN containers with the 55 mm / #202 neck. It is purpose-built for the LiVAR container and lid ecosystem.

Compatibility

  • LiVAR PET CAN containers with 55 mm opening.
  • LiVAR EPE and SOT aluminum lids for the #202 system.
  • Optional LiVAR plastic cover may be applied after the primary aluminum seal.

Operation

  1. Fill the compatible PET CAN.
  2. Position the matching aluminum lid.
  3. Place the container under the sealing head and start the cycle.

Validate seam quality and leak resistance before commercial production.

Applications

Suitable for dry foods, snacks, coffee, tea, confectionery, chilled desserts and non-carbonated beverages when the complete filling and storage process is validated.
